features such as fibre core, or the construction of the wire e.g. 6×36 IWRC, please add this into the additional information box at the end of constructing your wire ropes
Ending Types

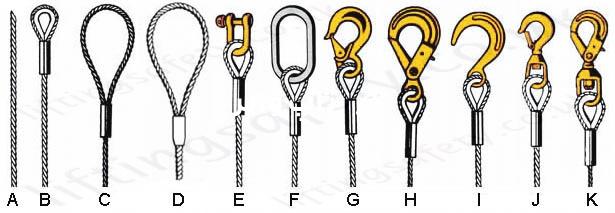

Please see the image below for letter references, the end fitting choices which are choices on the buy/quote tab are as follows
A – Fused and tapered
B – Ferrule secured thimble hard eye
C – Ferrule secured soft eye
D – Flemish eye, ferrule secured according to Din 13414-1. (Also known as Euroloop or Superloop)
E – Captivated shackle (permanent)
F – Master Ring
G – Sling Hook
H – Self-locking hook
I – Foundry hook.
J – Swivel Sling Hook.K – Swivel Self-locking hook
Maximum Safe Working Loads with Different Slinging Methods
EN 13414-1 Table 4 – Working load limits for slings using steel cored rope of classes 6×19, 6×36 and 8×36
